2.5" Fuel Filter Bracket

Can be used to support 2.50" dia. pumps and billet fuel filters

Choose between two mounting styles for your 2.5" fuel filter or pump:

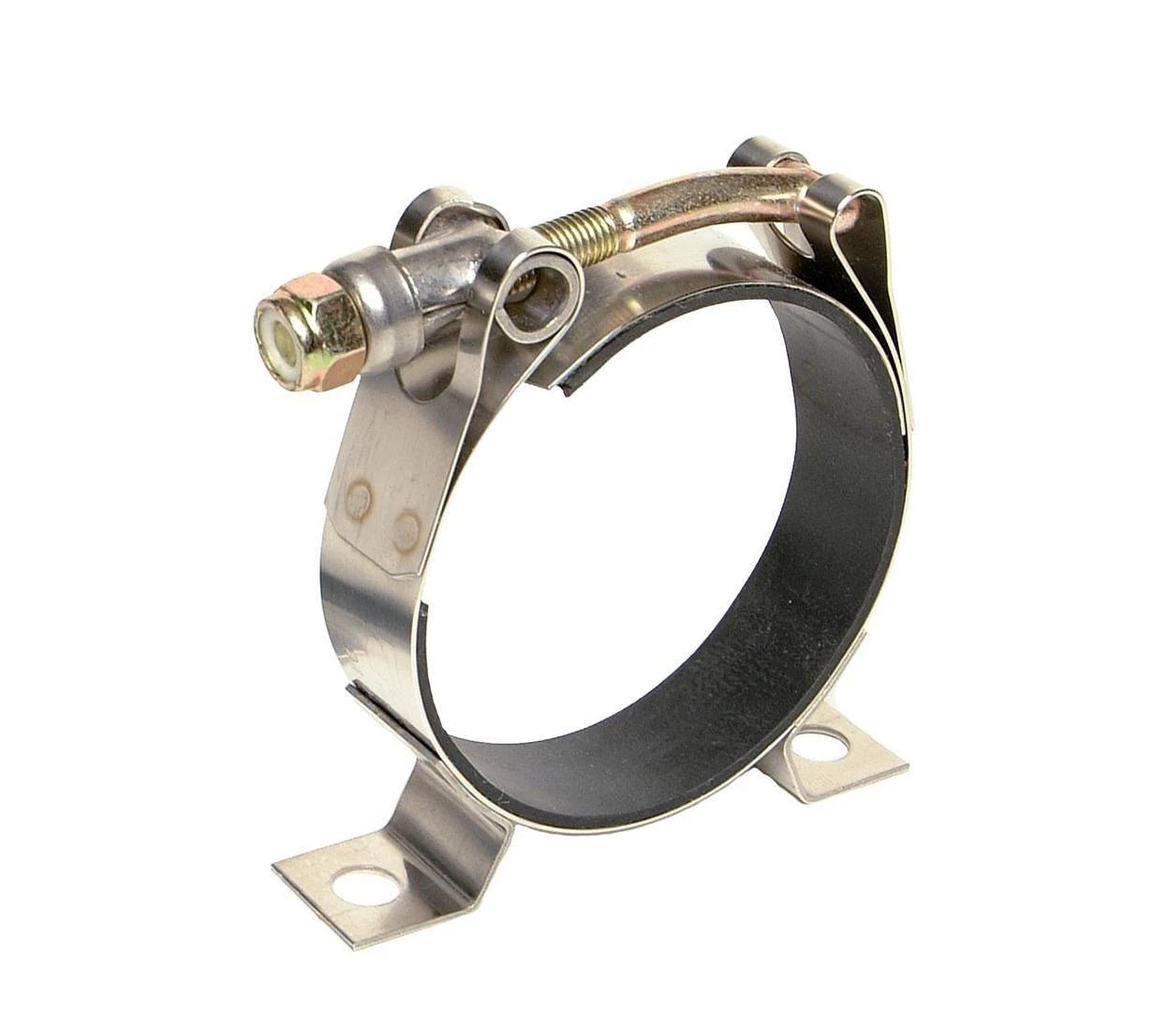

T-Bolt Style (PN 12702)

• Hose clamp style with stainless steel construction
• Fits hose diameters from 2.250" to 2.500" O.D.
• Secure, adjustable clamping

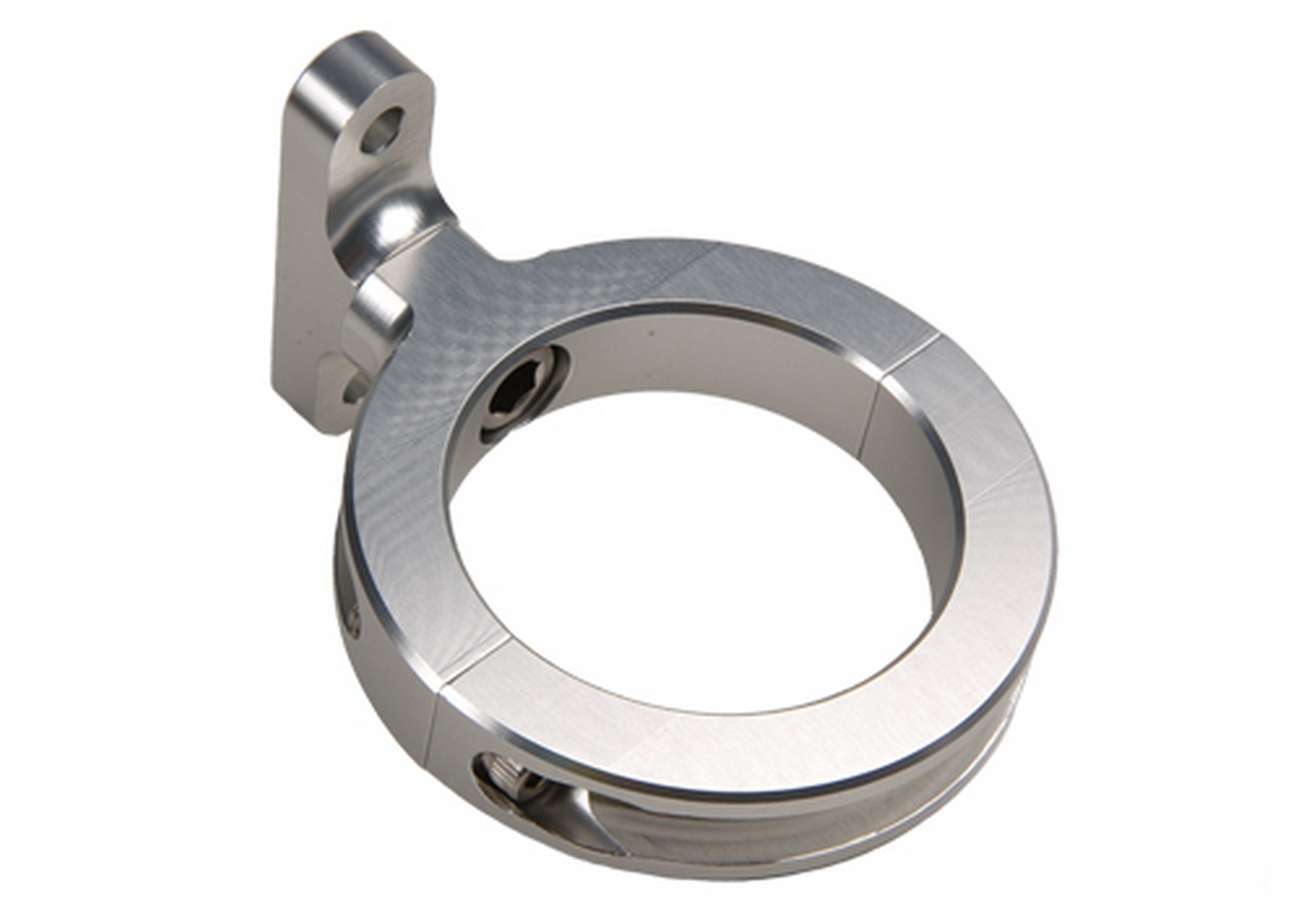

Bolt-On Billet Bracket (PN 11703)

• Two-piece aluminum clamp design
• 2.5" inside diameter
• Bolt-on mounting with 0.25" holes spaced 2" center-to-center
• Dimensions: 4.375" L × 2.688" H × 0.75" thick
• Rigid, permanent installation

Both styles securely support 2.5" diameter fuel filters and pumps. Select the T-bolt option for flexibility or the billet bracket for a solid, welded-in appearance.
