Weldon A2005-A Billet Line Electronically Driven Fuel Pump

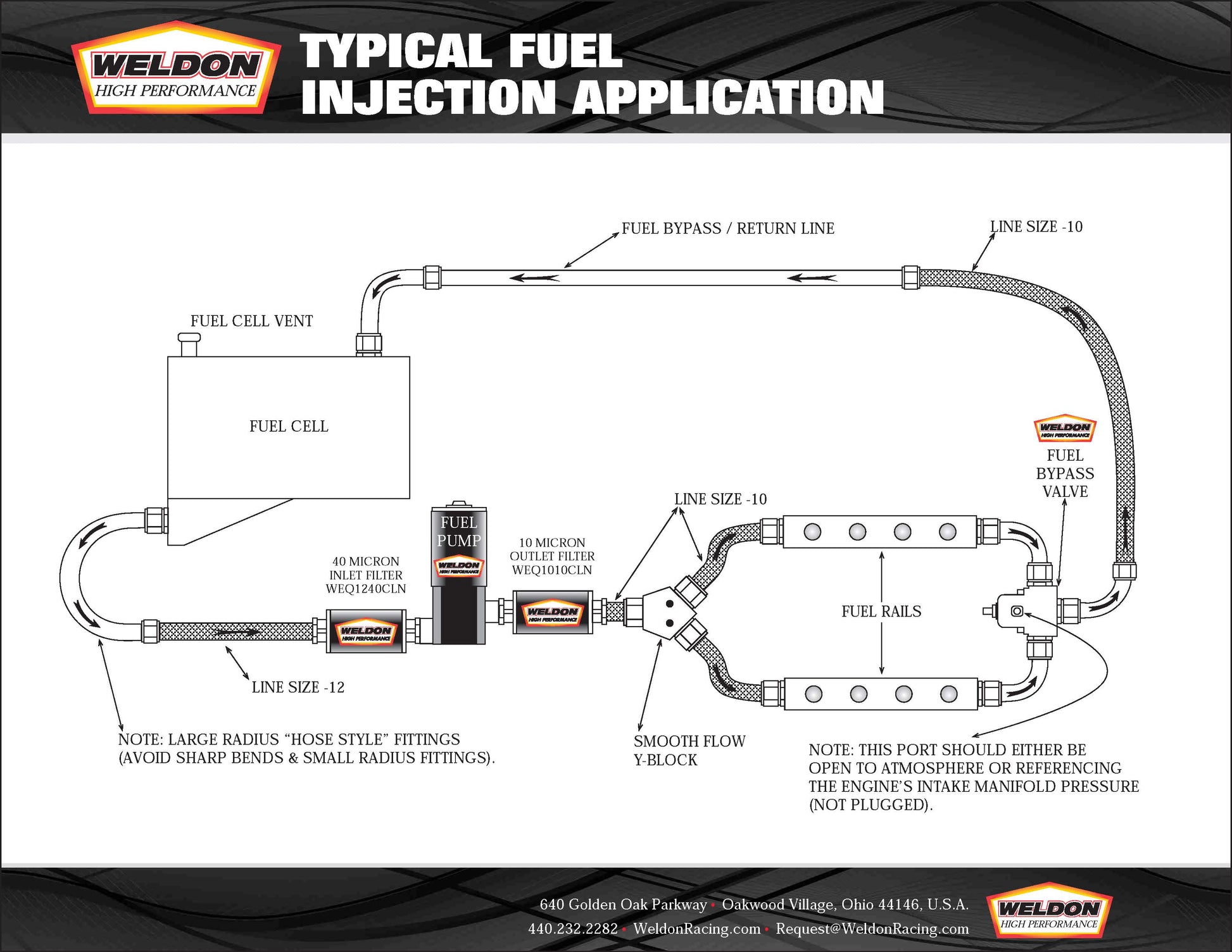

• Fuel Injected Engines:
  • 700 HP @ 50 PSI (Naturally Aspirated)
  • 500 HP at 80 PSI (Boosted)

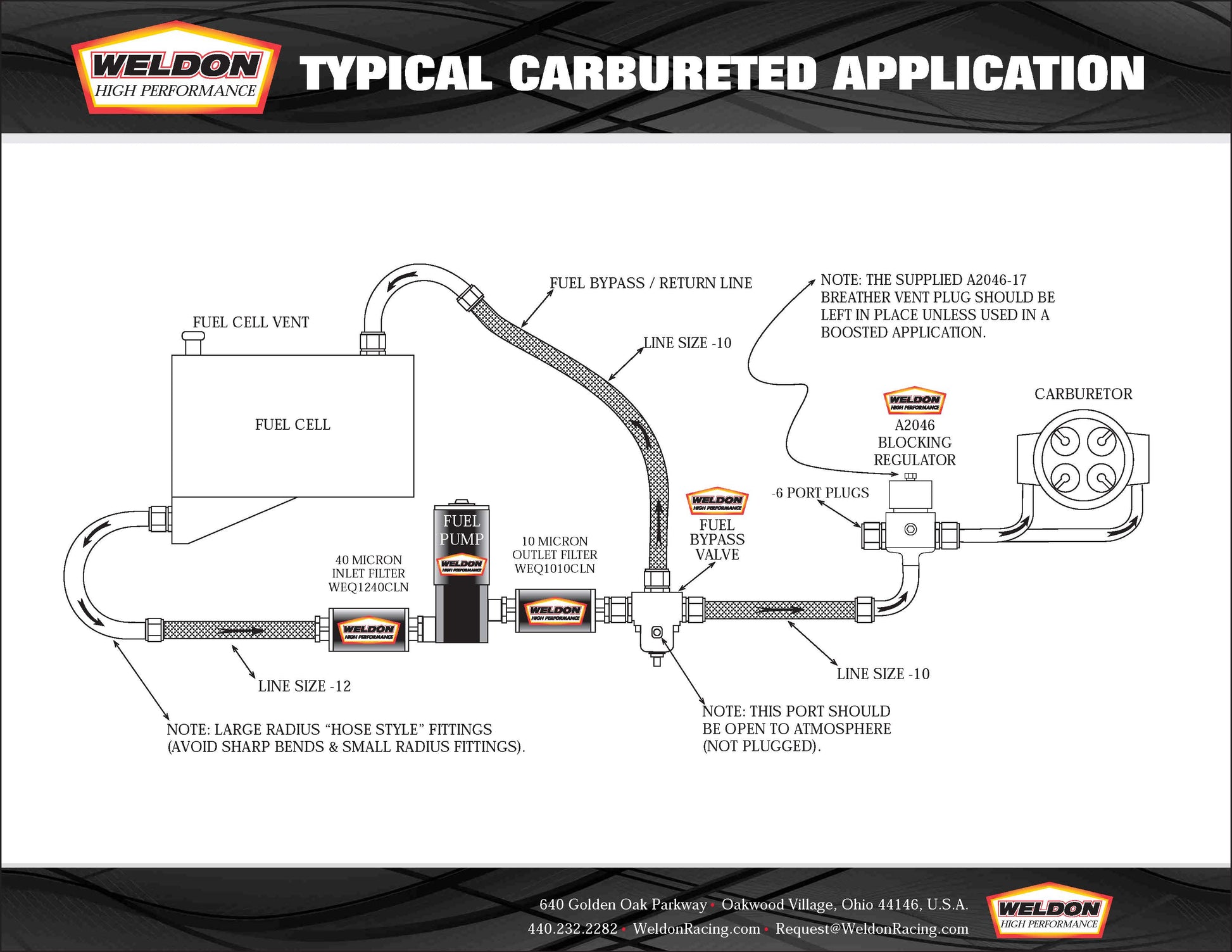

• Carbureted Engines:
  • 800 HP @ 7 PSI (Naturally Aspirated)
  • 600 HP @ 30 PSI (Boosted)
• Precise, consistent fuel delivery
• Self priming
• Pump element is 100% tool steel
• Body machined from billet aluminum
• All billet pumps are 100% serviceable
• For carbureted and injected engines

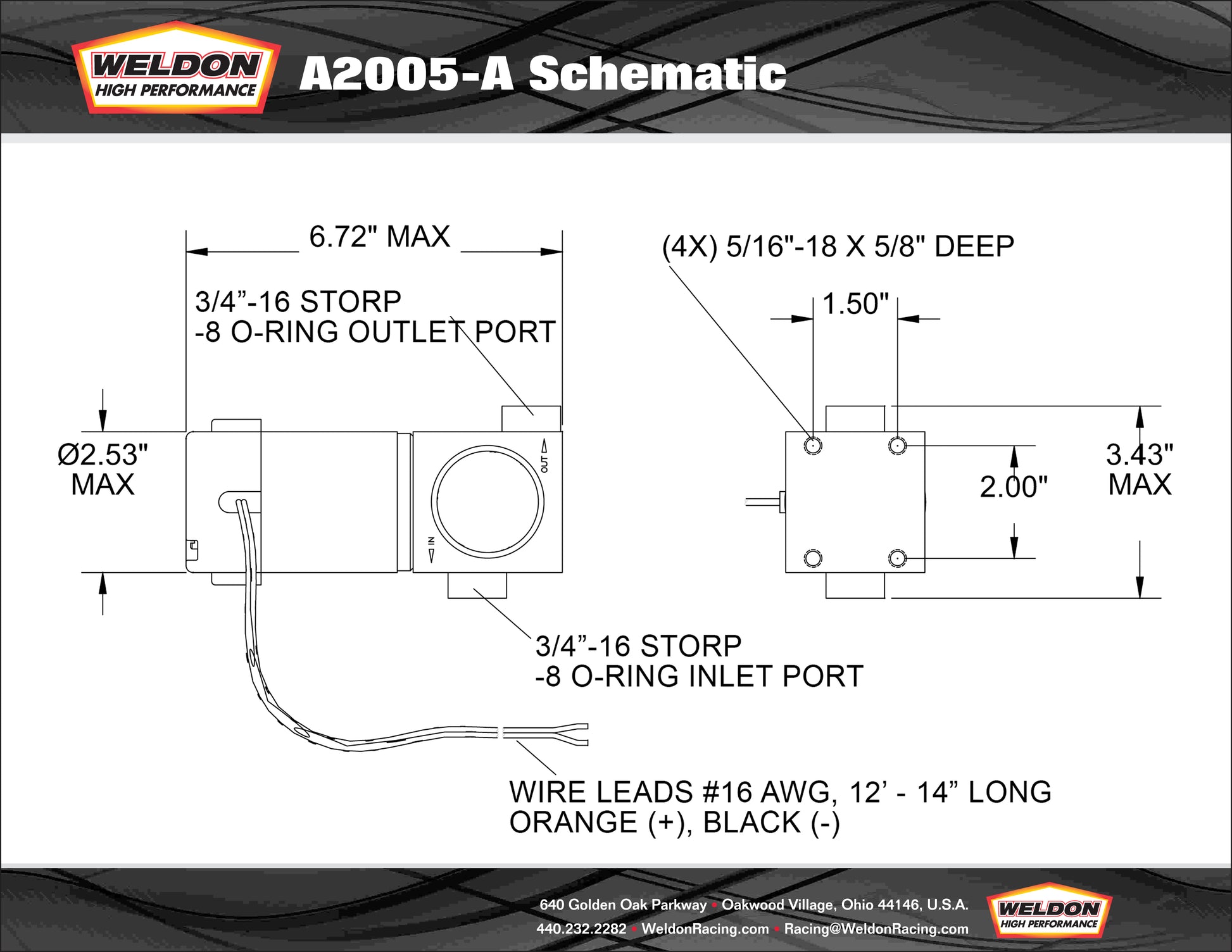

• -8 inlet and outlet o-ring ports
• 4.4 lbs

Filtration Recommendations

• 40 Micron Cellulous Filter Assembly
• 10 Micron Cellulose Filter Assembly
• For fuels other than gasoline, a Stainless filter is recommended

Compatible Fuels

• Gasoline
• Methanol
• Diesel
• Ethanol
• All racing fuels

Usually ships in 1-2 days, Pricing and availability subject to change
