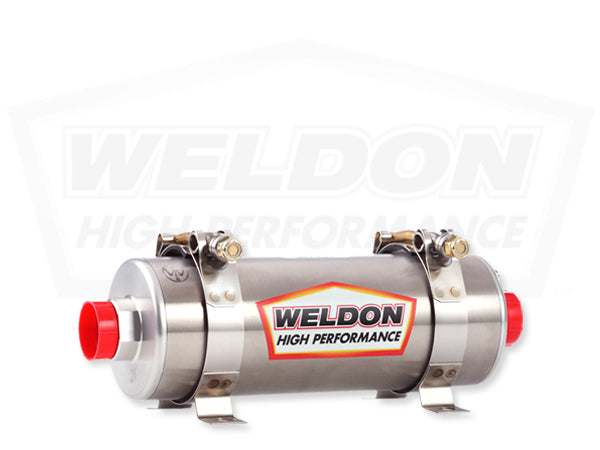

Weldon 1100-A Flow Through Fuel Pump

Weldon 1100-A Flow Through Fuel Pump Details

• Fuel Injected Engines:
  • 1400 HP @ 50 PSI (Naturally Aspirated)
  • 1000 HP at 80 PSI (Boosted)
• Carbureted Engines:
  • 1600 HP @ 7 PSI (Naturally Aspirated)
  • 1500 HP @ 30 PSI (Boosted)
• Extremely quiet
• Precise, consistent fuel delivery
• Self priming
• Continuous duty pump with extremely low current draw
• All internal pump components are 100% metallic
• Housing is made from 304 brushed stainless steel
• MIL-SPEC clear anodized billet end caps
• For carbureted or injected engines
• -10 inlet and outlet o-ring ports
• Two stainless steel T-bolt style clamps included with each pump
• 6.0 lbs

Filtration Recommendations

• 100 Micron Stainless Filter Assembly
•  10 Micron Cellulose Filter Assembly

Compatible Fuels

• Compatible with gasoline only
• Not compatible with alcohol / ethanol based fuels
